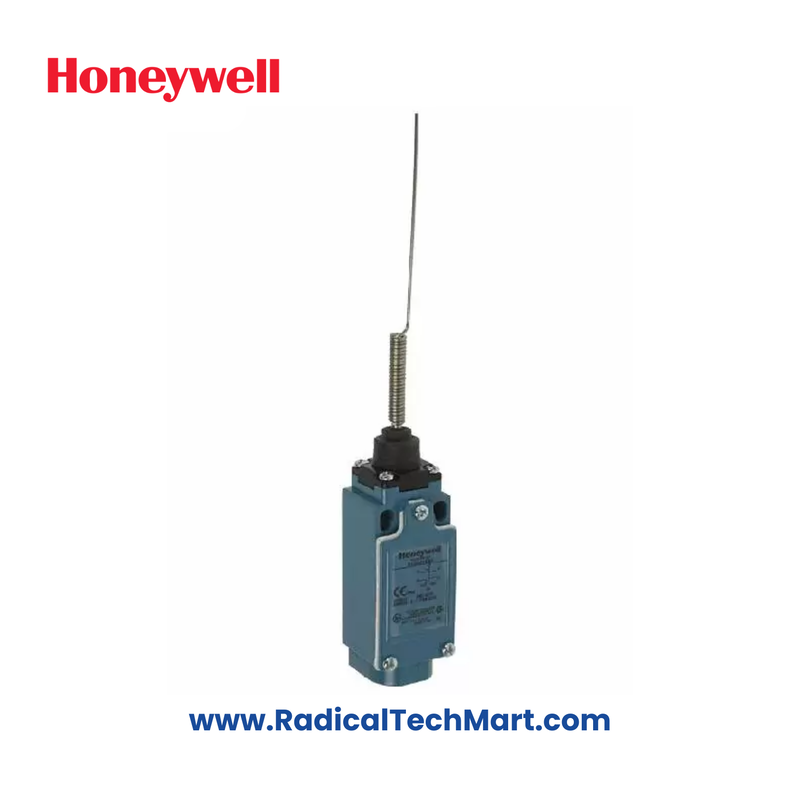

GLCA01K8A Honeywell Limit Switch

Product Overview:

• Brand: Honeywell
• Model No.: GLCA01K8A

Conformance to Standards:

• CE
• EN 50047
• IEC/EN 60947-5-1
• CSA C22.2 #14
• UL 508
• CCC1 GB14048.5
• EN 45545-2 (GLC/GLE)

Housing Material:

• GLC Series and GLE Series: Electrostatic epoxy coated zinc
• GLD Series: High-strength glass-reinforced thermoplastic

Actuator Types:

• Side rotary
• Top pin plunger
• Top roller plunger
• Top roller lever
• Top wobble actuator

Termination Options:

• 0.5-14 NPT
• PG 13.5
• 20 mm
• PF 1/2
• Deutsch style 4-pin connector
• Other cable/connector options available (contact Honeywell Representative)

Contact Options:

• GLC and GLD Series (Plastic Housing):
  • 1NC/1NO (1 Normally Closed / 1 Normally Open)
  • 2NC (2 Normally Closed)
  • 2NO (2 Normally Open)
• GLE Series (Metal Housing):
  • 1NC/1NO
  • 2NC
  • 2NO
  • 2NC/2NO

Contact Types:

• Snap-action
• Slow-action break-before-make (BBM)
• Slow-action make-before-break (MBB)
• Slow action

Contact Material:

• Silver (standard)
• Gold plated (for low-energy applications)

Technical Specifications:

• Thermal Current (Ith): 10 A
• Rated Insulation Voltage (Ui): 300 V
• Rated Impulse Voltage: 2.5 kV
